Elveflow Pressure Source

Laboratory pressure source

Light & compact pressure source ideal to supply a microfluidic pressure regulator

Plug & Play pressure supply

A stable and reliable supply (up to 2.5 bar)

Low noise level

A benchtop instrument for quiet environement (<54 dB)

Small footprint

A light & portable unit (2 kg)

Talk to an expert

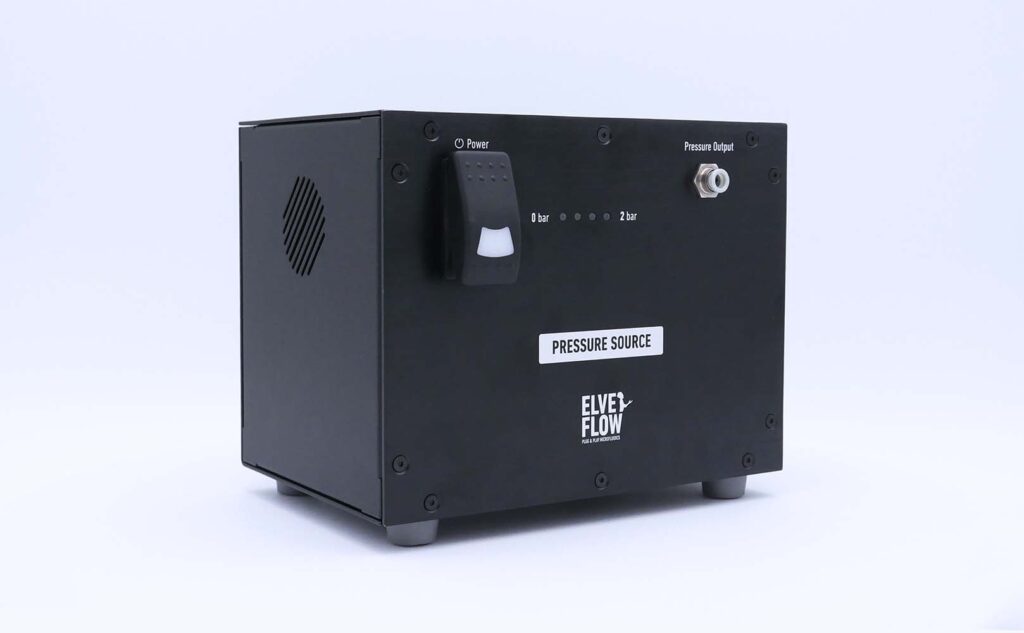

A compact and light pressure source

We designed an oil-free pressure source to ease the integration in a laboratory environment thanks to its small footprint and integrated tank.

This pressurized air source is ideal to supply compressed air to a pressure regulator such as the Elveflow OB1. The steady pressure of 2000 mbar makes it the perfect companion product for 0-200 mbar or 0-2000 mbar OB1 pressure regulators.

Content

1* Pressure source instrument
1* Power supply unit (24V DC)
2m of pneumatic 6mm OD tubing

Elveflow Pressure Source (EPS)

Performances
Max pressure	2.5 bar (36 psi)
Air flow rate (at operating pressure)	1.5 L/min (at 2 bar)
Noise level	<54 dB
Mechanical specifications
Dimensions (l x w x h)	188 x 194 x 160 mm
Weight	2 kg
Pneumatic connection	6 mm push-in
Internal tank volume	350 mL
Operating temperature	5-40°C
Operating humidity	up to 80%
Electrical specifications
Input Voltage (V)	24V
Typical power (W)	19.2W
Provided power supply specifications:	Supply voltage range (V): 100 to 240 VAC Supply AC frequency (Hz): 50 to 60 Hz Maximum output current (A): 1.5 A Maximum output power (W): 36W
