How to perform the microfluidic injection of a controlled volume of sample?
At a glance
This application note explains how the MUX Inj, a bidirectional 6-port, 2-position valve, injects a controlled volume of sample into a microfluidic chip. In the load phase the sample fills a sample loop while buffer flows to the chip, and after the valve switches the buffer pushes the loop contents into the chip. Applications include cell culture on chip, drug screening and toxicity tests.
- Injected volume
- Equals the internal volume of the sample loop, usually a piece of tubing
- After the injection
- While the second position is held, buffer goes to the chip and sample goes to waste

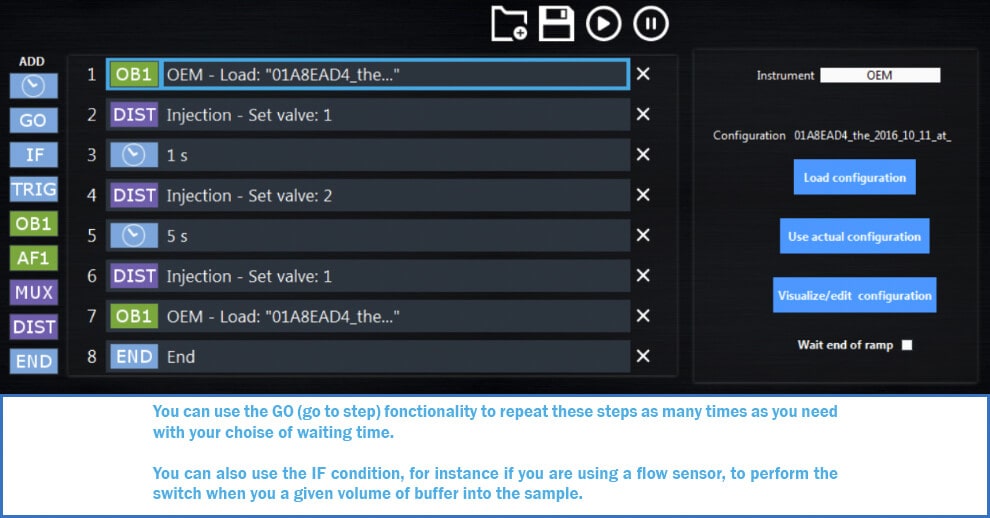

- Repeat injections
- Load and injection steps can be repeated to inject a given volume more than once
