Recently, researchers switched to microfluidic pressure-driven flow control systems because of their unique performances for microfluidic experiments. However, for historical reasons syringe pump were the most used system in microfluidics.
In this application note, you should learn:
Pressure-driven flow controlled microfluidics is used for many applications that require an accurate control over parameters such as size, shape, generation rate, mixing…
Notably, emulsion and foam applications demonstrate a real need to control very precisely the microfluidic bubble or droplet generation to obtain a stable emulsion or foam.
For more insight into these work, please check the following notes & related short reviews:
Pressure-driven flow controlled microfluidics is also very useful for any biological applications that require a fine tuning of the forces acting on the cells, bacterias or any living systems contained within the microfluidic device.
For more information about dynamic cell culture performed by pressure-driven flow controlled microfluidics, please refer to these application notes:
OB1 MK3+ flow controller
Sample Falcon reservoirs
Microfluidic flow sensor
A pressure driven flow controller is a smart alternative to syringe pump. It allows pulseless flow within subsec response time. It consists in using a gas input pressure within a hermetic liquid tank in order to flow liquid from the tank to your microfluidic device.
A pressure controller pressurizes a tank, such as Eppendorf, Falcon or a bottle containing the sample, which is then smoothly and quasi-instantly injected into a microfluidic chip.
Figure 3 : The reservoir is pressurized, the gas pushes on the fluid surface, the fluid will flow through the outlet. Thus, controlling the input gas pressure of the tank willallow to control the liquid that flows out of the tank. Thanks to piezoelectric pressure regulation, Elveflow’s systems are able to regulate flow within 40 ms with a 0.005 % stability. One advantage of pressure-driven flow control lies in the ability to handle fluid volumes of several hundreds of mL. You can thus turn your system into a powerful syringe pump.
By coupling our pressure controller with one of our flow sensors, you can perform ultra precise and responsive pressure-driven flow control. You can request a flow rate value in the Elveflow Software and the pressure controller will automatically adjust pressure to reach the requested value thanks to a customizable PID Feedback loop.
Figure 3: pressurized reservoir
[ob1f_rebound]
Technical comments:
The main advantage of syringe pumps is that they are easy to use, and but they present slow response time when setting a new flow rate and flow oscillations due to motor steps.
Flow changes inside chips can take seconds to hours (see the tutorial on syringe pump responsiveness in microfluidics). This lack of reactivity is one of the main limitations of syringe pumps for numerous applications notably for droplet-based microfluidics as described in this short video:
Modern microfluidic pressure controllers also enable you to control both pressure and flow rate by integrating a flow meter with a feedback loop. Microfluidic researchers mainly use pressure controllers when they require high flow responsiveness and high flow stability and precision, as well as when they work with dead-end channels or require large sample volumes. More informations about response time & stability in microfluidic systems.
Syringe pumps are convenient and have been used for a long period. However, performances are limited (response time, oscillations) when the setup is complex or when a fine control is requested as it is usually the case in microfluidics.
Pressure-driven flow control was developed for microfluidics and perfectly meets users’ expectations (responsiveness, stability, reproducibilty…).
Feel free to contact our team of experts for any additional information!
Do you want tips on how to best set up your microfluidic experiment? Do you need inspiration or a different angle to take on your specific problem? Well, we probably have an application note just for you, feel free to check them out!

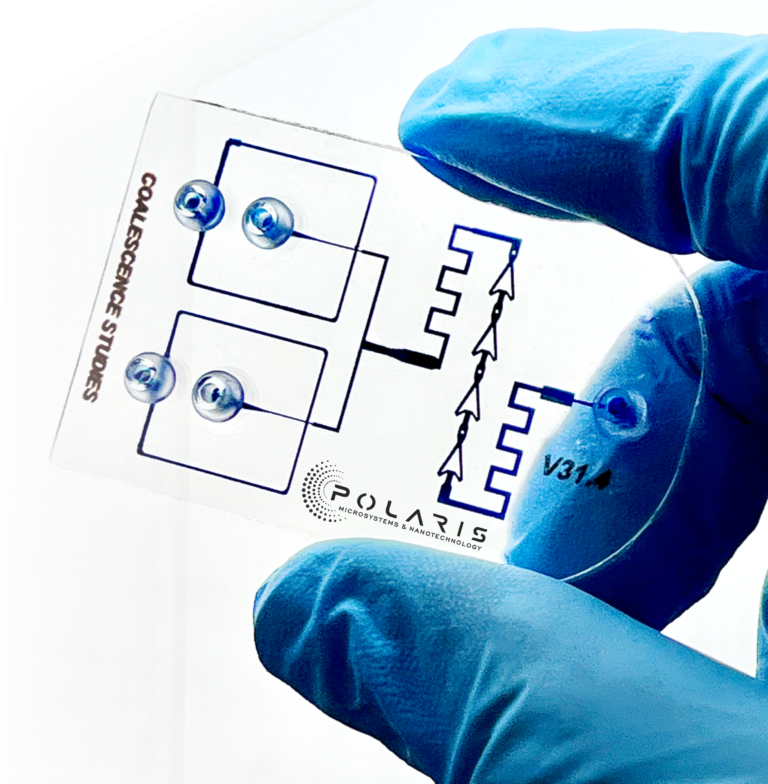

Discover a high-resolution microfluidic device designed for precise oil-in-water emulsion studies and coalescence analysis. Learn how Elveflow's advanced flow control enhances petroleum research and beyond.
Discover a simple and intuitive microfluidic water-in-oil droplet protocol under microscope monitoring
This application note demonstrates a smart use ouf Elveflow's Pressure sensor and sensor reader for Direct-Ink-Writing flow control.

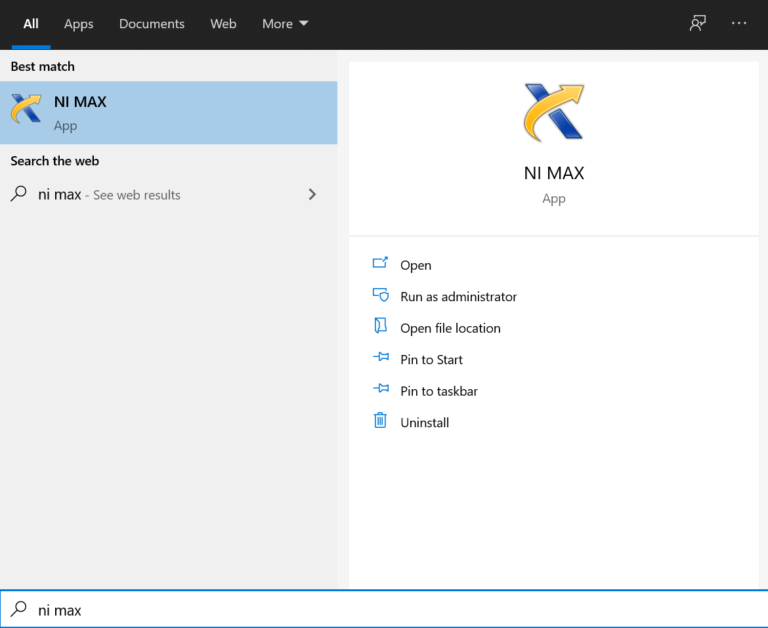

Learn how to set up your development environment for Elveflow products with this comprehensive tutorial.
Single-wall carbon nanotubes (SWCNTs) are considered as quasi 1-dimensional (1D) carbon nanostructures, which are known for their outstanding anisotropic electronic, mechanical, thermal and optical properties.

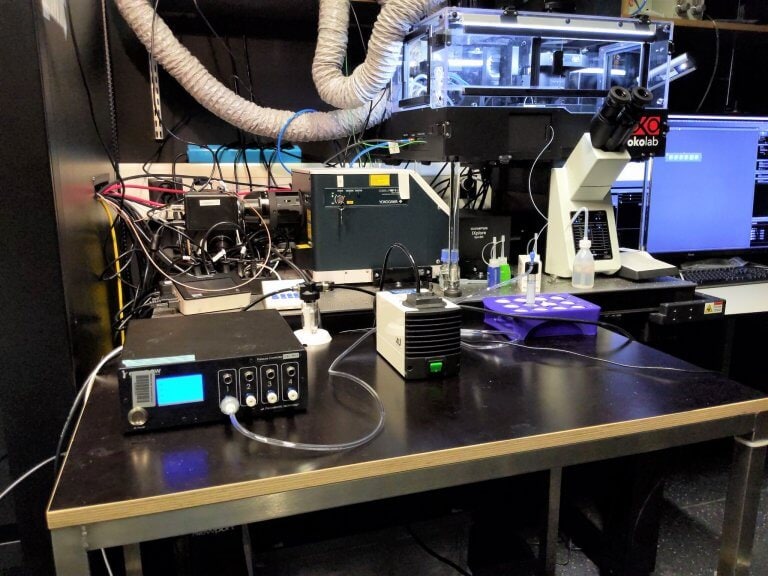

This application note describes how to combine and synchronise liquid perfusion and imaging using an Olympus spinning disc confocal microscope together with an Elveflow pressure-driven flow controlled microfluidic system.

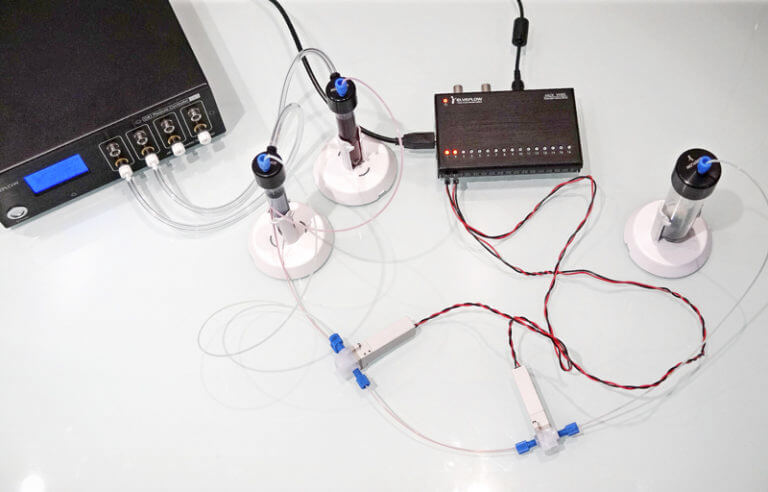

The MUX Wire enables you to host up & control many valves of your choice. It gives you a total freedom to add up to 16 valves and put them anywhere in your set-up and control them independently and simultaneously.

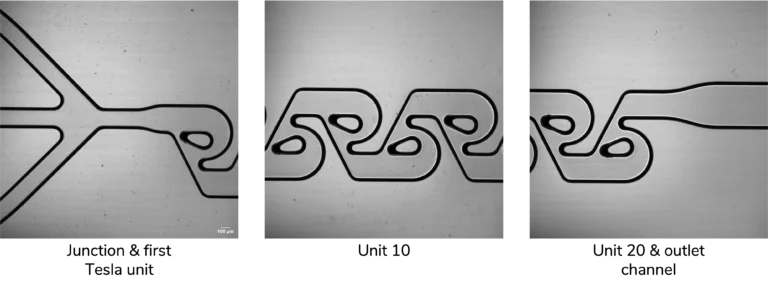

Mixing is a crucial step for several microfluidic applications like chemical synthesis, clinical diagnostics, sequencing and synthesis of nucleic acids
This application note describes how microfluidic can be employed as a nanoparticle generator based on the example of PLGA bead generation.

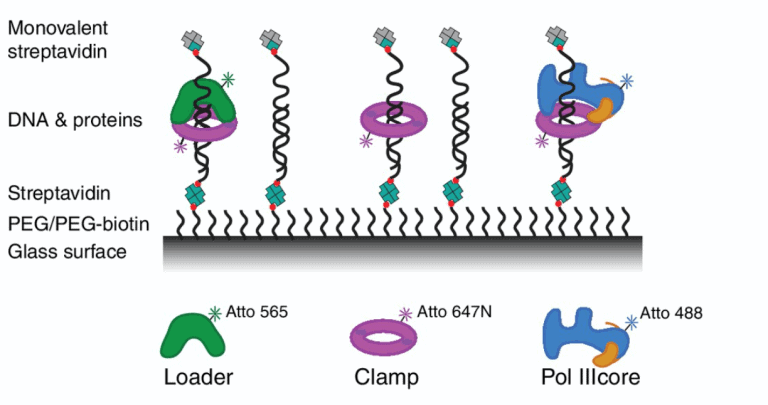

This user guide will show you how to run microfluidic colocalization studies of single molecule spectroscopy.
This application note explores the basic principle of pneumatic pumps and a flow controller based on the basic principle of pneumatic pumps, known as pressure driven flow control. It also demonstrates the applications of pressure driven flow control in a range of industrial & research fields.
Microfluidics is the science of handling small amounts of liquids, inside micrometer scale channels. Discover how to handle fluids for your microfluidic experiments.
Flow regulation is a compulsory operation in most of the microfluidics operations. In some applications such as 2D or 3D cell culture, flow regulation is essential since accurate micro-environmental parameters control is required. Elveflow do it’s best to make this operation as easy as possible to help you to focus on what really matter in your setup.
Study the impact of molecular transport on cell cultures with a cross flow membrane chip and microfluidic instruments.
