Perfusion System for Organoids

Pressure-driven flow control for organoids

Most organoids grow in static culture: a Matrigel or BME dome in a well, with the medium changed by hand every day or two. That holds until the organoid grows dense. Past a certain size, the organoid outgrows what diffusion can supply, and its core becomes hypoxic and nutrient-deprived. Manual medium changes add their own uneven, stop-start swings. Moving to flow keeps fresh medium reaching the tissue, which supports maturation and longer viable culture. Two things then decide whether flow suits a delicate 3D culture: how low and stable it is, and how well it fits the vessel and the microscope. The usual bench options each have a weak point here.

Rocker or gravity plate. A rocker or gravity plate puts an organoid under flow with no pump at all: it tips the plate back and forth, and the medium runs to the low side on each tilt. The flow is a by-product of that motion: it reverses direction every cycle, rises and falls within each rock, and the only handles are the tilt angle and the rocking interval. So the shear an organoid feels swings through each cycle, hard to set to a target or reproduce from one run to the next.

Syringe pump. A syringe pump imposes the flow rate directly: a motor advances the plunger at a fixed speed, so you specify the volume delivered per minute. That is why it is the usual step past a rocker. Two limits show up at the organoid scale. At the low settings an organoid needs, its flow turns pulsatile, moving in small steps. And in a soft, elastic setup at low flow rate it is slow to react: the plunger advances, but the tubing and the chamber take up the pressure first, so the medium can take minutes to move at all. A refill then breaks the run partway through. Reopening a sealed line to reload or swap the syringe risks contamination, and imperfect priming can push a bubble into the line, where it may dislodge or damage a fragile organoid.

Peristaltic pump. For a long organoid culture, a peristaltic pump earns its place because it recirculates, returning a costly medium to its reservoir for reuse across the run. The cost is pulsation: the rollers squeeze the tubing in turn, so the flow pulses with each one, and the pulsation grows with the flow rate. A shear-sensitive organoid feels those pulses, and slowing the flow to smooth them changes the condition you set out to hold. Over the days a maturation run lasts, the repeated squeezing also wears the tubing. Its walls stop springing back the same way, so the volume moved per turn changes and the calibrated flow rate drifts with it.

Pressure controller. A pressure controller gives a low flow rate you set and keep, steady from the first second. It sits on the gas side, with no moving part in the liquid, and acts on the medium directly, so the flow reaches steady state in milliseconds and carries no pulse, up to 20× steadier than a syringe or peristaltic pump. That steadiness holds whether the run lasts an hour or a week.

Keep a maturing organoid under low, steady shear

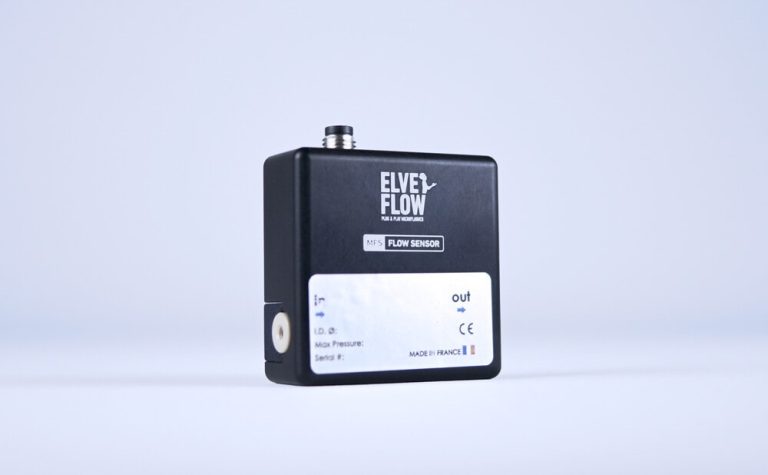

A maturing organoid is shear-sensitive, so the flow has to stay low and steady across a long culture. You add a flow sensor to lock the rate: enter a target, an MFS or BFS sensor measures the real flow, and the pump trims its pressure until the two match. You can set it low, into the sub-µL/min to low-µL/min window organoid perfusion works in, on a steady value or a slow sinusoidal profile. A sinusoidal profile gives a rhythmic, dynamic flow, closer to the perfusion a tissue sees in the body than a constant stream: the vascularized organoid complex below was matured this way, at 1 to 10 µL/min. The rate holds while tubing warms or a reservoir empties, and pressure stability reaches a small fraction of full scale, so the medium arrives smoothly across hours and days rather than in jumps the tissue would feel.

Reach the organoid lumen

A self-organized organoid encloses its lumen and apical surface, sealing them from the surrounding medium, and that surface is exactly the one that matters for transport, luminal signalling, and host-microbe work. Pressure-driven flow reaches it. Drive a fine capillary that punctures the organoid, and the applied pressure sets the flow at its tip, so you inject a solution into the lumen or withdraw its contents, and switch between the two on demand. The response is fast and reversible, so you can wash a marker in and back out, or perfuse a lumen colonized with bacteria, and follow the change under the microscope as it happens.

Long maturation runs, hands-off

Organoid maturation runs from days into weeks, so the setup has to keep going without someone at the bench. Pressure draws medium from a reservoir of any size, a millilitre or several litres, and the injection speed stays the same whichever you use, so a larger reservoir simply extends the run. Program the flow and the timed medium exchanges once, and the software runs the protocol on its own.

• Long runs on their own: set a low flow rate and timed exchanges over days and leave it.
• Recirculation: return conditioned medium to its reservoir and reuse it, so a costly organoid medium lasts across the run.
• Microscope sync: trigger image acquisition from the flow, or start a step on a trigger from the microscope.

And for a larger setup, there are SDKs for Python, MATLAB, LabVIEW and C++.

Image organoid development live

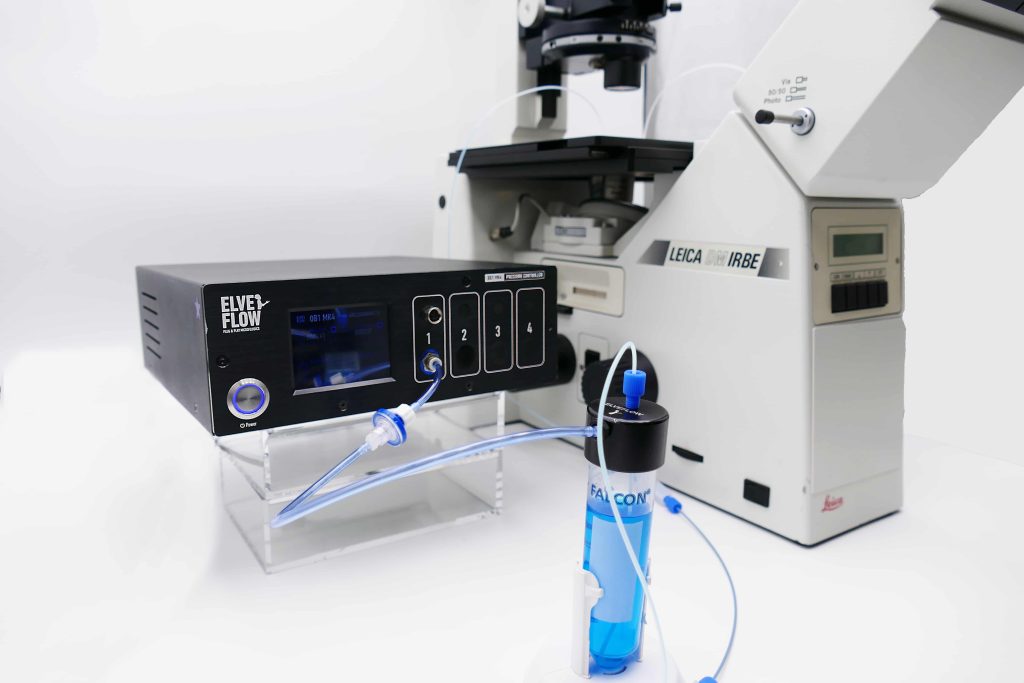

Watching an organoid form and mature under the microscope needs a flow that adds nothing to the image. The pump sits off the fluid path and delivers a pulseless flow, so there is no pump vibration in the field and the organoid stays under continuous, low-shear perfusion while you record. A TTL trigger lines the flow up with image acquisition, so a perfusion step and a capture share one clock. When a protocol calls for a shaped flow, a slow sinusoidal cycle or a profile of your own, you upload it and the fast response reproduces it faithfully.

Reproducible organoid results

Organoid work is known for batch-to-batch drift, and the setup is often part of the cause. A medium change that arrived a few hours late, a shear the tissue felt during a manual exchange, a flow that shifted from one run to the next: each adds variation to the biology. A held flow rate takes that variable off the table. Set a low flow rate today and you get the same rate next week, and once the run is scripted the same exchanges arrive at the same times whether it is you or a colleague who launched it. The condition your organoids see becomes the thing you are testing rather than a source of scatter, which counts for more as organoid models move toward non-animal testing, where another lab has to reproduce the result.
