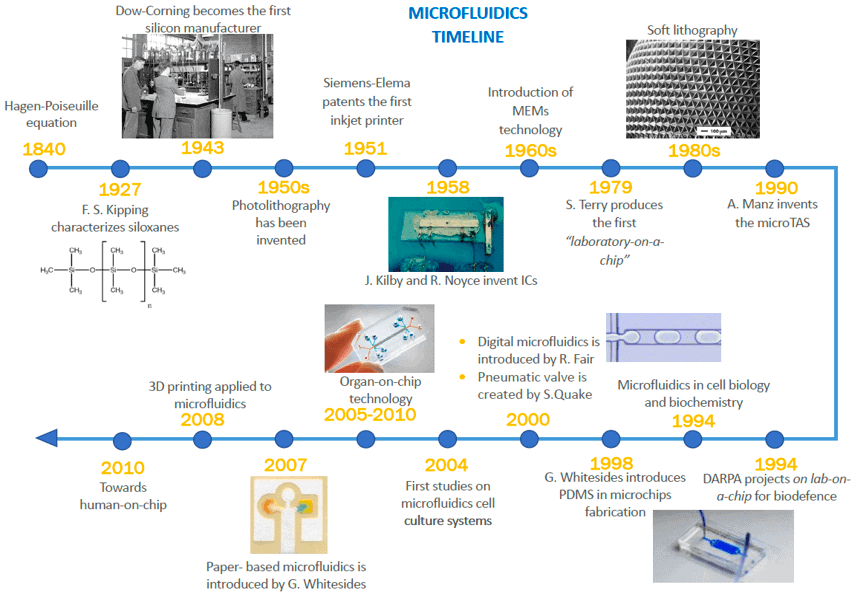

Fathers of integrated circuit technology
Integrated Circuits (IC) technology and photolithography development go hand in hand. The first developments of ICs were carried out by Werner Jacobi, a German engineer, in 1949, and by the British radar scientist Geoffrey Dummer a few years later. However, Jack Kilby and Robert Noyce are considered co-inventors of the IC technology, despite working separately (Figure 1 and Figure 2).

Figure 1. Robert Noyce and his silicon ICs.
In 1958, Jack Kilby started working at the Micro-Module program at Texas Instruments, a program sponsored by the US Army Signal Corps whose aim was to create components of uniform size and shape with integrated wires that could be easily assembled to make circuits. That summer, Kilby had no vacations and started working alone in the lab, developing the idea that both passive (resistors and capacitors) and active (transistors) components could be made on the same piece of semiconductor material. By September of the same year, he showed the first working integrated circuit made in germanium. Six months after Kilby had patented his invention, Robert Noyce, a physicist and co-founder of Fairchild Semiconductor, understood the limitations of germanium as material for integrated circuits and started working on silicon ICs, which is why ICs are said to have two fathers. This discovery radically changed the society, being used to create computers and electronic devices for applications in medical, transportation, entertainment and communication fields, and allow achievements such as the Apollo moon program.

Figure 2. Jack Kilby shows an integrated circuit, 1982.
First came photolithography
Photolithography was invented in the early 1950s, when the U.S. National Bureau of Standards (NBS, then US Army Diamond Ordinance Fuze Laboratory, DOFL) promoted a program to develop new methods obtaining small electronic circuits that could be easily integrated into military proximity fuzes [1]. From 1952, Jay Lathrop and James R. Nall started using photoresists to pattern germanium. They were able to project light through a specially modified trinocular microscope. Thus, they created a germanium transistor that could be easily incorporated into miniaturized hybrid transistor-to-ceramic circuits. Lathrop and Nall wrote a paper and patented their discovery in 1958-1959, coining the word photolithography (Figure 3). Lathrop himself declared: “The operation actually involved etching, not lithography. However, photolithography sounded higher tech to us than photoetching … and this misnomer has been used ever since”. Lathrop and Nall were not the only researchers who worked on this topic. From 1955, Andrus Jules and Walter L. Bond at Bell Laboratories also developed etching (photoengraving) techniques for producing patterns on silicon semiconductors by using oxide layers, an invention patented in 1964 (US Grant US3122817A).

Figure 3. The patent written by Lathrop and Nall about semiconductors construction, 1959
2. PARENTS OF MICROFLUIDICS
As described by Whitesides [2][3][4], microfluidics has four parents: molecular biology, molecular analysis, national security and microelectronics.
The oldest one is considered to be molecular analysis, which includes methods such as gas-phase chromatography (GPC) or capillary electrophoresis (CE)[5][6]. These techniques, developed from the 1950s and 60s, allow the separation of chemical compounds or biomolecules by flowing small amounts of a sample in narrow tubes or capillaries, reaching high sensitivity and resolution (Figure 4).

Figure 4. (A) Professor Stellan Hjertén, who first used capillaries to perform electrophoresis, with an automated version of the capillary free zone electrophoresis apparatus in 1967 (image source). (B) A logical NOR IC component of the computer controlling the Apollo spacecraft (1960s) and (C) the “Baby Blue”, a prototype of PCR machine: the software controller is integrated with the thermal cycling block, 1986 (image from Science Museum Group).
The most famous parent of microfluidics is microelectronics [7]: at the beginning, researchers tried to directly fit fabrication methods and materials from microelectronics to microfluidics: photolithography as well as silicon and glass were the first players on the microfluidics stage. Only later did microfluidics split from microelectronics and semiconductors technology by using new specific microfabrication methods and materials [8].
A lesser known but pivotal forerunner of microfluidics is military detection. Starting from 1994, DARPA (Defense Advanced Research Projects Agency of USA) substantially contributed to the growth of microelectromechanical systems (MEMs) and the development of miniaturized and portable “laboratories on a chip” with the main goal of the detecting chemical and biological weapons.
Molecular biology, especially genomics in the 1980s, strongly contributed to microfluidics birth and evolution as its fourth “parent”. The interest of scientists in studying and sequencing nucleic acids led to the development of sequencing machines capable of working with small samples to ensure a high sensitivity read-out [5]. An example? The famous PCR (polymerase chain reaction) technique used to amplify a DNA sequence by means of heat was developed in the early 1980s by Kary Mullis. The reaction requires small amounts of liquid, usually 10-200 µl, so precision equipment is necessary. At the beginning, due to the lack of automated equipment, the reaction was a time-consuming multi-step process that had to be performed manually. The first commercial machine, a simple thermal cycler, was developed in 1987; it rendered the process reliable and its small dimensions gave the possibility to miniaturize operations as well as to work outside of the lab.
3. FROM THE FIRST MICROFLUIDIC LAB-ON-A-CHIP TO THE µTAS CONCEPT
Starting in the 1950s, there was an increasing interest in designing miniaturized systems and components, which had recently become possible thanks to the development of new technologies to create complex 3D micro-patterns on semiconductors. Research started in miniaturizing sensors, transducers and other components and to then integrate them with microcomputers in order to obtain portable (small dimensions) integrated platforms to use as environmental or medical monitors/ measurements systems.
A pioneering work was carried out by Stephen Terry from Stanford university, who in the mid-1970s produced a miniaturized gas chromatograph (GC) integrated on a silicon wafer [9] (Figure 5). The miniature GC was composed of gas supplier, sample injection system, capillary column and output miniaturized thermal conductivity detector. The injection valve and the capillary were fabricated through a micromachining technique onto a silicon wafer while integrated circuit (IC) processing methods, developed starting from late 1950s, were used for the detector microfabrication. This device was considered one of the firsts examples of “laboratory-on-a-chip”.

Figure 5. The article written by S. C. Terry and published on IEEE Transactions on Electron Devices in 1979 about a miniaturized gas chromatograph [9].
Following in the footsteps of Terry, Andreas Manz, a Swiss researcher and analytical chemist, was one of the first to use microchip technology in the field of chemistry to shrink a laboratory to the size of a chip in the 90s [10][11]. In 1990, he published a paper in which he introduced the concept of miniaturized “total chemical analysis system”, abbreviated to “ µ-TAS”, for chemical sensing, i.e. a microfluidic device capable to perform all steps in an analysis [12] (Figure 6). He demonstrated that the µTAS allows faster and more efficient sample separation (chromatographic or electrophoretic), shorter transport times and reduced consumption of reagents compared to chemical sensors and conventional analysis systems. Moreover, the fabrication of a multi-channel device allowed experiments to be run in parallel.

Figure 6. A scheme representing an ideal chemical sensor, a TAS (total chemical analysis system and a miniaturized µ-TAS, as described by Manz et al. [10].
Thus, in 1993, he created a µTAS on a glass chip that could perform capillary electrophoresis of amino acids in few seconds [11]. The device was fabricated in Pyrex glass by micromachining and was composed of capillaries with length from 1 to 10 cm, with a cross-section of 10×30 µm. The results demonstrated the possibility of creating a miniaturized laboratory-on-a-chip that could be used for complex analyses.
One year later, the Chemical and Biological Microsystems Society (CBMS) organized the first workshop on µTAS to present its basic concepts and technologies.
