AUTOMATIC VOLUME DISPENSING
Automatically dispense volumes in continuous or digital modeSwitch between continuous and digital volume dispensing actions
Automatic control of up to 4 independent lines per unit
Set a stable and automated protocol for enhanced reproducibility
Features & Benefits
Why using a pressure-driven flow controller for volume dispensing
Many industries rely on volume dispensing for their operations, such as pharmaceuticals, biotechnology, semiconductors, and electronics manufacturing. Accurately and efficiently dispensing small volumes of liquids is crucial in these fields to conduct experiments and manufacture high-quality products.
Pressure-driven flow controllers are highly advantageous for volume dispensing applications as they provide greatly stable and accurate control over fluid flow rates, thus making them ideal for dispensing small volumes of liquids in the nL to uL range. Furthermore, they offer a gentle non-contact method of dispensing fluids, which is critical when dealing with sensitive samples that could be damaged by traditional methods.
Using pressure-driven flow controllers, researchers and manufacturers can achieve high precision and repeatability, reducing sample-to-sample variation and minimizing sample loss and contamination.
The pressure-based system allows for precise and reliable dispensing without causing damage to sensitive samples. This technology is also widely flexible and can handle a wide range of liquids, from low-viscosity to high-viscosity fluids, making it ideal for a wide range of applications.
If you want to discover how to integrate our pressure controller in your platform, don’t hesitate to contact us!
Advantages:
- Wide flexibility: Handle large and diverse types of liquid.
- Enhanced performance: Highly-stable control over pressure and flow rates.
- Reduced contamination: Ensure a clean working protocol thanks to its non-contact flow driving principle.
- Gentle fluid control: Reduce the risk of sensitive sample damage or degradation.
Volume dispensing setup

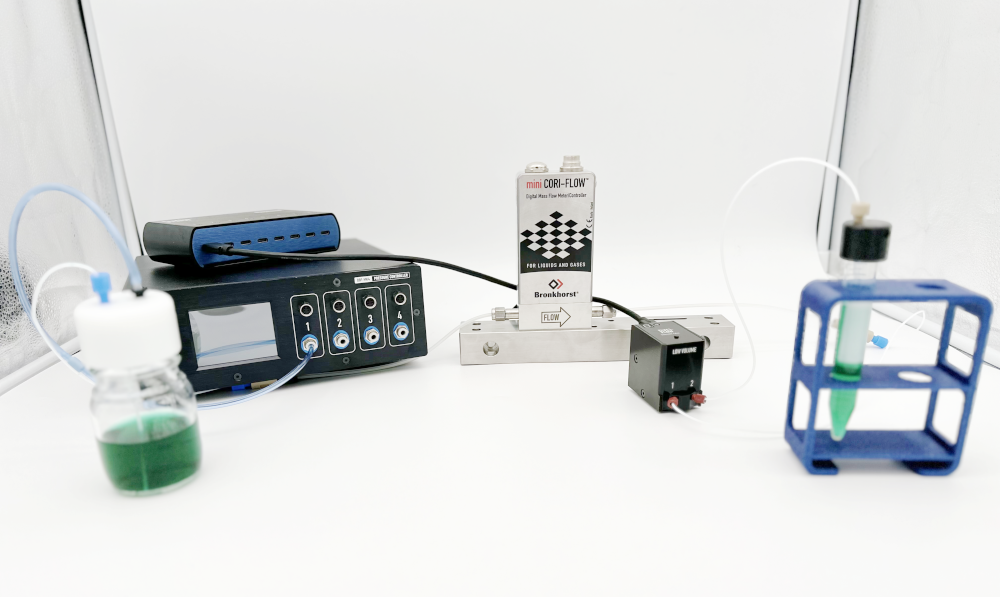

The automatic volume dispensing system includes several components: a multichannel OB1 pressure controller that regulates pressure, an in-line pressure sensor to monitor the injection pressure, a fast-switching 2/2 solenoid valve, and a valve controller.
The pressure controller injects one or more solutions accurately (down to 1%) and stably into your fluidic path. Additionally, when combined with the pressure sensor, it establishes a feedback loop that maintains a constant pressure at the specific injection point. This ensures that the system dispenses a consistent and reproducible volume of fluid over time.
Furthermore, the solenoid valve provides greater flexibility for the dispensing options. It is in fact possible to control the state of the solenoid valve with the valve controller, thus dispensing fluids continuously or in digital steps. This makes it easier to customize the dispensing mode to any specific experimental needs.
Setup 1
The volume dispensing setup contains:
- OB1 flow controller (Elveflow)
- BFS flow sensors or in-line pressure sensors (MPS) (Elveflow)
- 2/2 valves and controller (MUX Wire) or any commercially available high-speed valve
- Any commercially available nozzle
- Pressure-tight reservoirs, connectors, tubing, filters,…
- Controlling software (Elveflow) or UART serial communication protocol (optional: SDK libraries; C++, Python, MATLAB, LabVIEW)
Customize your setup
Our setups are easily customizable to fit your experimental needs perfectly. In fact, our specialists will help you choose the best instruments and accessories and accompany you during the setup of the microfluidic platform. Thanks to our support, you will quickly obtain your first experimental results and save precious time.
Moreover, to help you expand your platform from the prototyping to large-scale phase, we will provide technical support on the system upgrades.
– Check our other use cases for various applications –
Frequently Asked Questions
Since Packs are products that are still being developed, we have a few eligibility criteria to maximize their success rate. A discussion with our experts is needed to determine your specific needs to offer you a personalized response.
Yes, we have developed a simple protocol for sterilization and cleaning that is provided along with the user guide.
Yes! Our experts will establish which instruments are best suited for your application, such as the type of flow sensor or the number of flow controller channels you need to perform your experiment. Drop us a line at [email protected]
You can order the instruments on the product section of our website.
