Microfluidic valve switching: How to control the flow while changing flow line with a Mux Distributor ?
At a glance

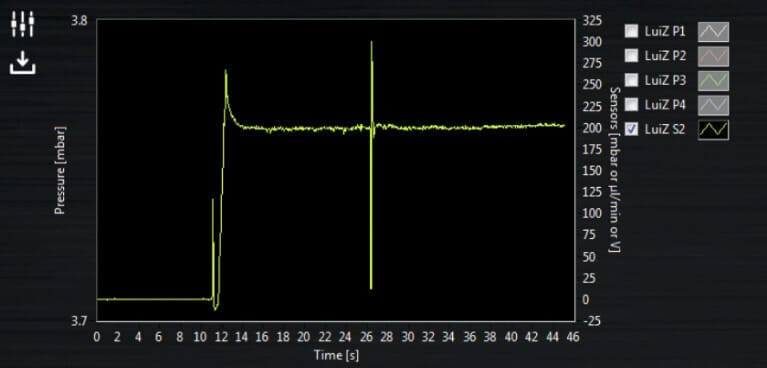

This application note describes how to maintain a controlled flow rate during microfluidic valve switching with an OB1 and a Mux Distributor. In the example shown, the flow rate drops during switching, overshoots the set value, then returns to it in less than 1s. The procedure covers circuit assembly, PID tuning, and manual switching or automation with the sequence planner.
- PID parameters
- Gain and integration time are tunable, D is preset; auto-tune is available
- Switching condition
- Neighboring Mux Distributor lines minimize switching disturbances
- Sensor mounting
- Flow sensor secured to a stable surface to limit vibration and movement disturbances
