Fluid recirculation: Material & Methods

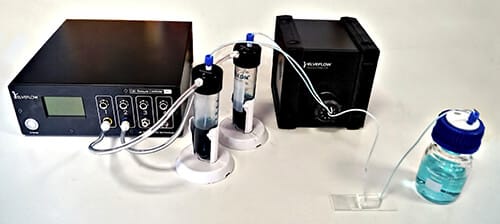

We are using here an organ on a chip to show case the recirculating setup.
This chip, from ALine Inc, is a two input two output chips. It consists of two channels, one upper channel and one above channel, separated by a semi permeable membrane. The idea of the experiment is to have a continuous and constant flow of for instance cell nutriment in the upper channel. This nutriment is recirculating during a given period of time. In the below channel, there is a continuous flow (for instance, of cells) which is not a recirculating flow.
This experiment showcases how the nutriments diffuse through the membrane and which amount of the initial quantity of nutriment has been consumed by the cells. We are here using a blue dye to mimic the nutriment.

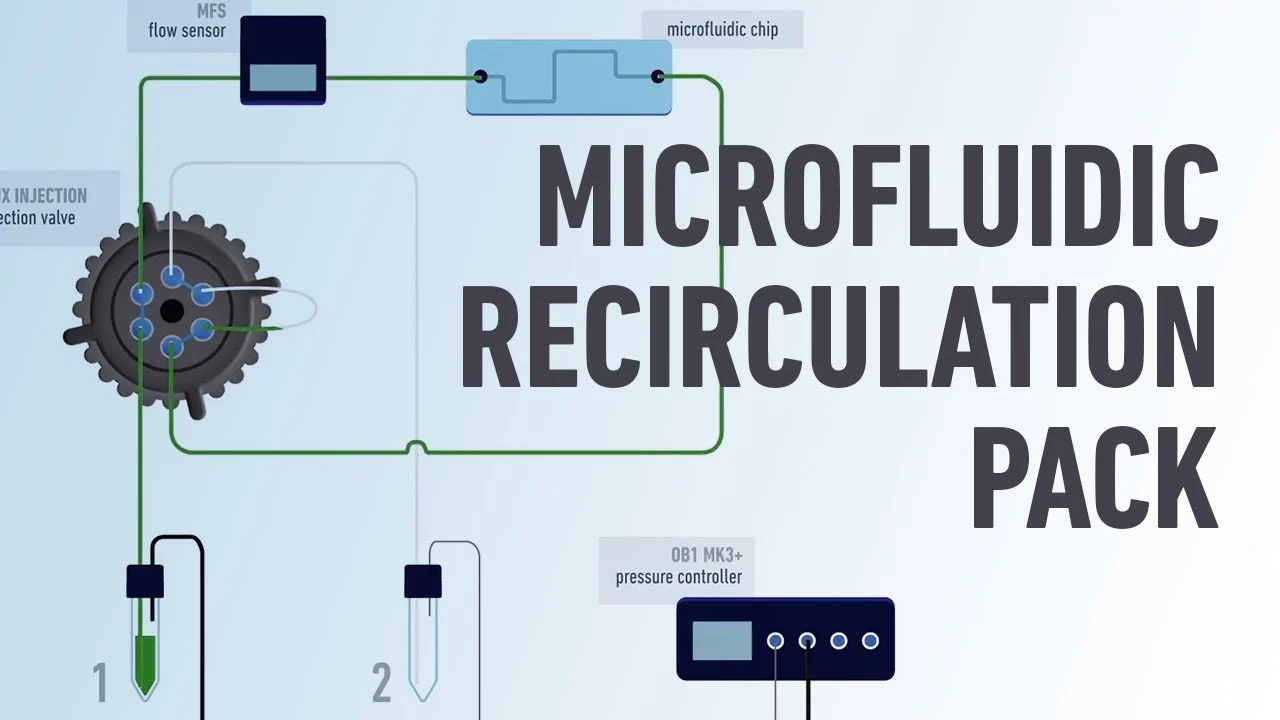

Fluid recirculation: Setup diagram
Warning : Make sure that the tubes are correctly inserted into the Mux Inj to prevent any leakage. The tube should reach the bottom of the connector in order to perform a waterproof connection. After inserting the tubes, tighten the spanner to ensure the sealing.

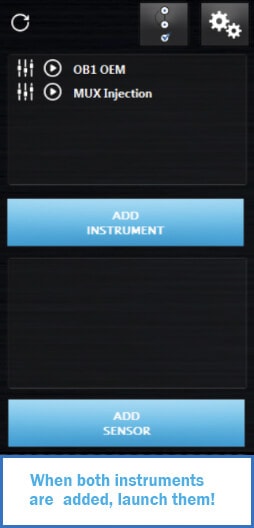

Step-by-step control with the Elveflow® smart interface

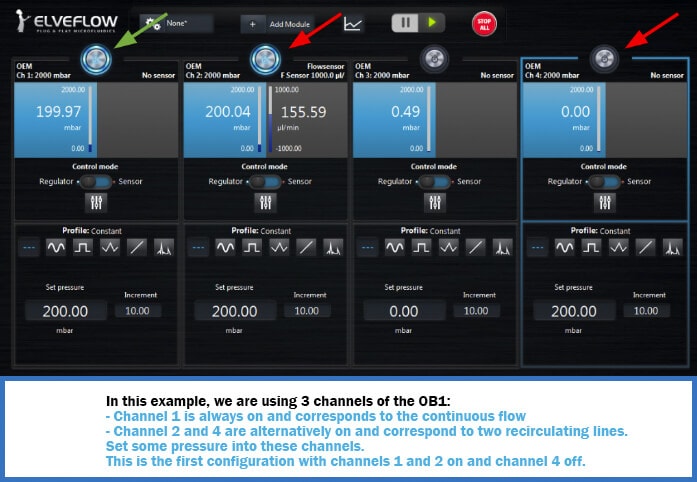

The Elveflow® smart interface allows to synchronize the OB1 MK3 pressure controller together with the Mux Inj in order to perform a recirculating set-up. This software is thought to run long term experiment thanks to the powerful sequencer which can perform the switch between reservoirs automatically either after a predetermined period of time or, in combination with a flow sensor, after a chosen amount of sample as gone through the chips.
Learn also how to perform medium recirculation for dynamic cell culture.
